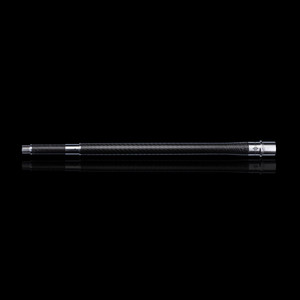

Helix 6 Precision 22 ARC Carbon Fiber AR Barrel
$1,049.99
Overview:
Helix 6 Precision’s carbon fiber AR barrels are designed for elite shooters and custom rifle builders seeking top-tier performance with easy installation. Each barrel is engineered with the ideal gas system length for the cartridge. Built around a match-grade 416R stainless steel core, these barrels are button-rifled, hand-lapped, and wrapped using our proprietary carbon fiber process.
Unlike traditional carbon barrels, Helix 6 barrels maintain point of impact (POI) during extended strings of fire, making them a go-to choice for precision marksmen, hunters, and competitors alike.
Key Features:
- Drop in for AR-15 Uppers – Precision chambered and headspaced for seamless installation.
- Match-Grade 416R Stainless Core – Button-rifled and lead-lapped for peak consistency.
- High Carbon, Low Resin Ratio – Superior thermal stability and performance.
- Hand Lead-Lapped – Delivers a consistent bore diameter and smooth finish.
- Minimal POI Shift – Maintains zero during extended strings of fire thanks to our proprietary carbon wrapping process.
- Muzzle Thread – 5/8-24
- Rifle +1” – Gas tube and roll pin included with 18 and 20 inch barrels.
Specifications:
|
Cartridge |
Length |
Twist |
Weight |
Gas System Diameter |
Gas System Length |
|
22 ARC |
16 |
7 |
1 lbs 10 oz |
.750 |
Rifle Length |
|
22 ARC |
18 |
7 |
1 lbs 13 oz |
.750 |
Rifle +1” |
|
22 ARC |
20 |
7 |
1 lbs 15 oz |
.750 |
Rifle +1” |
Pre-Order leadtime is currently 6 weeks.
